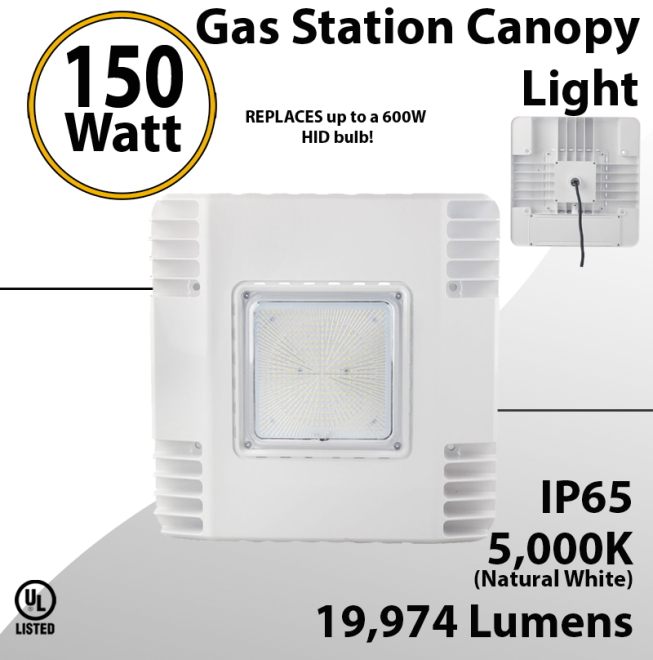

LED Canopy Light for Gas Station | 150W 19974 Lumens 5000K

Rating:
100 % of 100

Availability: In stock

SKU
CSC-SWC-1E19J-50
Certification LogoCertification LogoCertification LogoCertification LogoCertification LogoCertification Logo
150 watts Gas Station LED Canopy Light from LED Radiant are easy to install and they replace up to 600 Watts HID. Typical annual ROI > 65%. These LED gas station lights have 5000K color temperature and are IP65 waterproof, apt to be used outdoors, in wet locations. UL listed.Check how it looks in one of our customers Gas Station
Special Price $149.95 Regular Price $176.00
  • Buy 5 for $142.45 each and save 5%
  • Buy 10 for $137.95 each and save 8%
  • Buy 20 for $134.96 each and save 10%
  • Buy 50 for $131.96 each and save 12%
SPECIFICATIONS:
SKU: CSC-SWC-1E19J-50
Certification LogoCertification LogoCertification LogoCertification LogoCertification LogoCertification Logo
LED Replacement for HID up to 600 Watt
Electrical:
Watts:150
Operating Voltage:100-277 VAC
Operating Temperature:-22° F to 122° F
Operating Humidity:10% to 100%RH
Power Factor (PF):>90%
Power Supply Efficiency:>90%
Photometric:
LED Luminous Flux (lm):19974
Luminous Efficiency: 133
CRI (ra):>70
Color Temperature (Kelvin):5000 K
Lens type:Clear
Expected Life:70,000 hrs.
L70:50,000 hrs.
Beam Angle:110º
Mechanical:
IP Rating:IP65
Connector:Wired
Base Type:Hardwired
Heat Radiator:Anodized Aluminum
Color:White
Product Size:15\'\'x 15\'\'x 3.10\'\'
Package Size: 16.8'' x 16.8'' x 5''
Package Weight:14.700000 Lb
Certifications:
Safety Compliance:
Energy Efficiency/Performance:
APPLICATIONS:
And more

When it comes to illuminating gas stations, LED canopy lights are an excellent choice due to their energy efficiency, long lifespan, and bright illumination. One of the most popular LED canopy lights for gas stations is the 150W 19974 Lumens 5000K LED canopy light, which provides a maximum of 19974 lumens of bright, clear light that is perfect for illuminating gas station canopies and surrounding areas.

The 150W 19974 Lumens 5000K LED canopy light is a high-performance lighting solution that is perfect for illuminating large outdoor spaces such as gas stations. With its high lumen output and color temperature of 5000K, this light provides excellent visibility and color rendering, making it ideal for outdoor spaces where safety and security are of the utmost importance.

One of the key advantages of LED canopy lights is their energy efficiency. Compared to traditional lighting solutions, LED lights use far less energy while still providing the same or better levels of brightness. The 150W 19974 Lumens 5000K LED canopy light is no exception, providing a maximum of 19974 lumens of bright, clear light while using only a fraction of the energy that traditional lights use. This can help gas stations save money on their energy bills while reducing their carbon footprint.

LED lights are also known for their longevity, with a much longer lifespan than traditional lighting solutions. The 150W 19974 Lumens 5000K LED canopy light can last up to 50,000 hours, which means that it won't need to be replaced as often as traditional lights. This can help gas stations save money on maintenance costs over time, while also reducing the amount of waste that ends up in landfills.

Installation of the 150W 19974 Lumens 5000K LED canopy light is easy and straightforward, thanks to its simple design and included mounting hardware. It can be installed on any standard electrical junction box, making it a versatile and flexible lighting solution. Once installed, the light is incredibly durable, with a rugged aluminum housing and a shatterproof polycarbonate lens that can withstand harsh weather conditions and extreme temperatures.

Finally, the 150W 19974 Lumens 5000K LED canopy light is specifically designed for gas station use and is a versatile lighting solution that can be used in a variety of commercial and industrial settings. It provides bright and clear illumination that is perfect for illuminating gas station canopies and surrounding areas, making it an essential lighting solution for gas stations. It can also be used in indoor settings, such as retail spaces, gymnasiums, and manufacturing facilities, thanks to its bright and clear light output.

In summary, the 150W 19974 Lumens 5000K LED canopy light is a high-performance lighting solution that is perfect for gas stations and other commercial and industrial spaces. It provides a maximum of 19974 lumens of bright, clear light while using a fraction of the energy that traditional lights use. Its easy installation, durability, and versatility make it a popular choice for businesses that need reliable and efficient lighting for their outdoor and indoor spaces. If you are looking for a lighting solution that will help improve the visibility and security of your gas station, the 150W 19974 Lumens 5000K LED canopy light is an excellent choice.

More Information
DLC_QPL PL7O7S709IQN
Additional Information
CANOPY INSTALLATION GUIDE
(CCM-SBS-45410-40&50- CCM-SBS-70590-40&50)

PLEASE READ ALL INSTRUCTIONS BEFORE ATTEMPTING INSTALLATION

- To prevent personal injury or product damage only licensed electricians should install.
- To avoid electric shock or component damage disconnect power before attempting installation or servicing.
- This product must be installed in accordance with the national electric code (NEG) and all applicable federal, state and local electric codes and safety standards.
- Disconnect product and allow cooling prior to servicing.
- Any alteration or modification of this product is expressly forbidden as it may cause serious personal injury, death, property damage and/or product malfunction.
- To prevent product malfunction and/or electrical shock this product must be properly grounded.
- This luminaire is designed to operate in ambient temperatures ranging from -25•C to 40•C and to be horizontally mounted with the LEOs facing down.


Installation


1. Surface Mounted with J-box


1. Loosen the screw on side of the light, removing the bracket from canopy light by pulling it out slightly, just leaving the ring on bracket.

2. Fix the bracket on J-box, and put the wire through the central hole for wiring


3. Attach the Canopy light with bracket by putting the ring on clips again. Connect the black wire for Line, white for Neutral and Yellow-Green for Ground.
4. Slide the Canopy lights into bracket, and secure the screw on side of the light to prevent the light from sliding out from the bracket. Installation done.

2. Pendent with 3/4 inch Conduit


1. Loosen the screw on side of the light, removing the bracket from Canopy light by pulling it slightly out, just leaving the ring on bracket. (See the Step 1 above)
2. Connect the wires threaded from conduit and Canopy, Black wire for Line, White for Neutral and Yellow-Green for Ground.

3. Screw the Conduit the hole on top of Canopy light





3. Surface Mount


1. Remove the lens and metal plate by unscrewing the screws.





2. Cut off the wires through from 3/4" hole and 3. Remove 1/2" plug from direction intent to feed conduit.




3. Drill 4 holes on edge of fixture and fix it on the ceiling with using appropriate screws.




4. Disconnect the wires came from 3/4" hole and connect the wires came from 1/2" conduit with power supply (White for Neutral Black for Line and Yellow Green-Green for Ground)

5. Replace the metal plate and the lens, make sure no wires are pinched when replacing parts.

Save the environment, your children and the planet
500 North Dixie Hwy, #8, Hollywood, FL 33020 – (844).533.7230
Contact@ledradiant.com www.ledradiant.com
5 YEAR WARRANTY POLICY
For Commercial LED Lamps and fixtures


This document sets forth the warranty policy of the LEDRadiant organization (‘LEDRadiant’) from which you (‘Purchaser’) purchase your commercial LED Lamps .

This policy is applicable only to LEDRadiant (‘Products’) described in the Warranty Certificate extended to the Purchaser along with the correlated invoice or the Certificate in the website page for the product being questioned.

This warranty policy is subject to the provisions as set forth herein and is subject to the terms and conditions as attached to this document (‘Warranty Terms and Conditions’) .

This warranty policy only applies if referred to in a sales agreement between LEDRadiant and the Purchaser and it will replace the standard warranty clause provided in the LEDRadiant general terms and conditions of sale.

Warranty period
5 Year. The warranty period starts on the date the products are delivered.
By default, purchaser receives above mentioned ‘standard warranty’.

On request, an ‘extended warranty’ or ‘customized project warranty’ can be agreed upon after evaluation of the specific application conditions. Extended warranty cost will be calculated and applied to the order.

Purchaser shall not rely upon any other information or documentation.

Within the warranty period, LEDRadiant will replace any defective bulb or fixture with equal or updated working model in the same conditions or better.

Summary Warranty Terms and Conditions (non-exhaustive)

This warranty policy is valid only for products sold in The United States of America.
Products have been purchased directly from a LEDRadiant (sales) organization.
Proof of purchase is available for inspection by LEDRadiant.
Products have been properly installed and operated in accordance with the manufacturer’s instructions.
• More than 10% of the LED chips are not properly working.
A LEDRadiant representative will have access to the defective Products.
If the Products or other parts become suspect, the representative shall have the right to invite other manufacturers’ representatives to evaluate the lighting systems.
Shipping and Labor costs for installation of the Products are not covered under this warranty.

This warranty is valid for order number:
